Operating Steam Turbines at 48 Hz vs 50 Hz: A Technical Analysis of Performance, Efficiency, and Economic Impact

Q: Why is it important to operate steam turbines at their designed frequency (50 Hz)?

Steam turbines and their generators are engineered for optimal efficiency, mechanical safety, and power quality at a specific frequency—typically 50 Hz in India. Deviating from this frequency can cause efficiency losses, mechanical stress, and power quality issues.

Dr. Anubhav Gupta
Jun 7
9 min read

Modern industrial power generation relies heavily on steam turbines operating at designed frequencies to maintain optimal performance. However, operational constraints often necessitate running these systems at off-design frequencies, such as 48 Hz instead of the standard 50 Hz. This technical analysis examines the comprehensive implications of such frequency deviations on steam turbine performance, electrical systems, and overall plant economics.

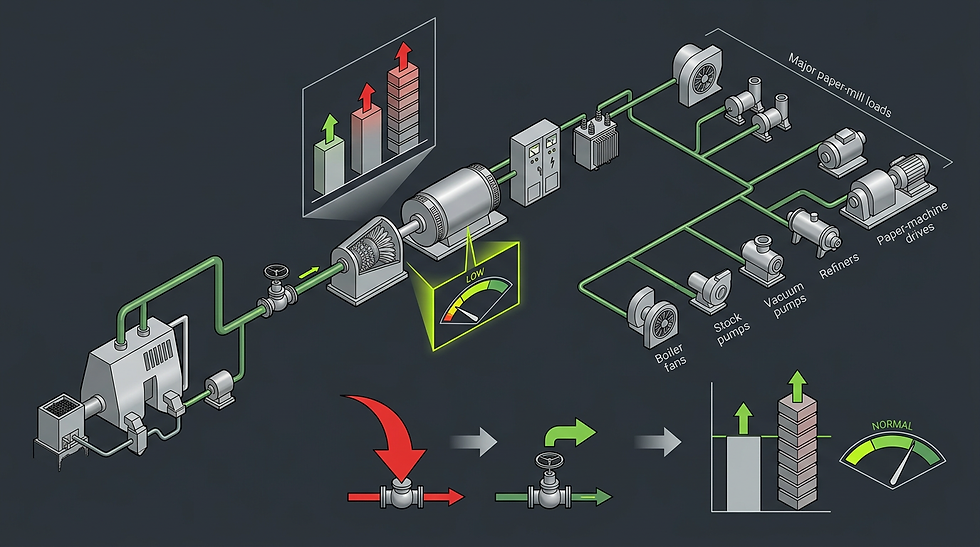

Comparison of operation of turbines at different frequency

Understanding Frequency-Speed Relationship in Steam Turbines

Steam turbines are designed to operate at specific rotational speeds that correspond directly to the electrical frequency they generate. For a standard 2-pole generator operating at 50 Hz, the synchronous speed is 3000 RPM[1]. When the frequency drops to 48 Hz, the rotational speed reduces proportionally to 2880 RPM, representing a 4% speed reduction.

This speed reduction fundamentally alters the turbine's operating characteristics, as steam turbines achieve optimal efficiency at their designed rotational speeds[1]. The relationship between frequency and speed is governed by the formula: n = 120f/P, where n is the speed in RPM, f is the frequency in Hz, and P is the number of poles.

Impact on Steam Consumption and Thermodynamic Performance

Steam Flow Rate Changes

Operating at reduced frequency significantly affects steam consumption rates. Based on thermodynamic principles and operational data, steam consumption increases approximately 4.17% when operating at 48 Hz compared to 50 Hz. This increase occurs because the turbine must process more steam to generate the same power output at reduced rotational speed[2].

The steam consumption relationship can be expressed as:

Q = P × 860 / (h₁ - h₂)

Where Q is steam flow rate, P is power output, and (h₁ - h₂) represents the enthalpy drop across the turbine[2]. At reduced frequency, the enthalpy drop becomes less efficient, requiring increased steam flow.

Efficiency Degradation

Steam turbine efficiency typically decreases by 2-3% when operating at 48 Hz compared to design conditions[3]. This efficiency loss stems from several factors:

Off-design operation of blade profiles: Turbine blades are aerodynamically optimized for specific steam velocities and angles corresponding to design speed
Reduced thermodynamic cycle efficiency: The Rankine cycle efficiency decreases with off-design steam conditions
Increased internal losses: Friction and leakage losses become more significant at reduced speeds

Consequences of operating turbine at non standard values 1

Consequences of operating turbine at non standard values 2

Mechanical Stress and Blade Vibration Concerns

Critical Frequency Considerations

Operating steam turbines at 48 Hz introduces significant mechanical risks, particularly regarding blade vibration and resonance. Steam turbine blades are designed and tuned for operation at rated frequency, and departure from this frequency can bring excitation frequencies closer to the natural frequencies of turbine blades[4][5].

The fundamental concern is that operating at 48 Hz may approach critical speeds where blade resonance occurs. When the natural frequency of turbine blades coincides with operating frequency or its harmonics, destructive vibrations can develop[6][7]. This resonance can cause:

Accelerated blade fatigue: Vibratory stresses increase significantly, leading to high-cycle fatigue
Blade cracking: Stress concentrations at blade roots and tie wires
Reduced component life: Cumulative damage effects that are non-reversible[8]

Blade Passing Frequency Effects

The blade passing frequency (BPF) changes proportionally with operating frequency. At 48 Hz operation, the BPF reduces, potentially bringing it closer to structural resonant frequencies of casings, pedestals, or other components[9]. This can manifest as:

Increased casing vibrations
Foundation resonance issues
Bearing and shaft alignment problems

Alternator and Generator Performance Impact

Electrical Output Characteristics

Operating alternators at 48 Hz instead of 50 Hz results in a direct 4% reduction in power output for the same steam input, as demonstrated in our calculations. This occurs because alternator power output is directly proportional to frequency when steam flow remains constant[10][11].

For industrial applications:

20 MW Paper Mill: Power output reduces to 19.2 MW, losing 0.8 MW capacity
40 MW Sugar Mill: Power output reduces to 38.4 MW, losing 1.6 MW capacity

Generator Thermal Considerations

Underfrequency operation can lead to several thermal challenges in alternators[8][12]:

Overheating potential: Reduced frequency can compromise cooling system effectiveness
Increased stator losses: Higher current requirements to maintain power output
Excitation system stress: Over-excitation may be required to maintain voltage levels
Insulation degradation: Sustained operation at elevated temperatures reduces insulation life

Electrical System and Power Quality Impact

Power Quality Degradation

Operating at 48 Hz significantly impacts overall electrical system power quality[13][14]:

Frequency deviation beyond acceptable limits: Most power quality standards specify ±1% (0.5 Hz) deviation for synchronous networks[13]
Voltage regulation issues: Reduced frequency affects transformer performance and voltage stability
Harmonics and distortion: Off-frequency operation can increase harmonic content
Equipment protection concerns: Many protective devices are calibrated for nominal frequency operation

Transformer and Electrical Equipment Effects

Underfrequency operation adversely affects connected electrical equipment[15]:

Transformer over-excitation: At constant voltage and reduced frequency, magnetic flux increases, potentially causing saturation[12]
Motor performance degradation: Induction motors experience reduced efficiency and increased heating
Power factor issues: Reactive power requirements change, affecting overall system power factor

Heat Rate and Thermal Efficiency Analysis

Based on our calculations using typical coal-fired power plant parameters:

Heat Rate Comparison

50 Hz operation: 2,457 kcal/kWh
48 Hz operation: 2,606 kcal/kWh
Heat rate increase: 6.06%

Efficiency Impact

Design efficiency (50 Hz): 35%
Reduced efficiency (48 Hz): 33%
Efficiency loss: 2 percentage points

This efficiency reduction directly translates to increased fuel consumption and operational costs, making 48 Hz operation economically disadvantageous for sustained periods.

Economic Analysis: Coal Consumption and Cost Impact

Annual Coal Consumption Analysis

Using typical Indian coal with heating value of 4,500 kcal/kg and assuming 85% load factor over 8,000 operating hours annually:

20 MW Paper Mill:

Coal consumption at 50 Hz: 74,260 tonnes/year
Coal consumption at 48 Hz: 75,611 tonnes/year
Additional coal required: 1,350 tonnes/year
Extra annual cost: ₹47.3 lakhs

40 MW Sugar Mill:

Coal consumption at 50 Hz: 148,521 tonnes/year
Coal consumption at 48 Hz: 151,221 tonnes/year
Additional coal required: 2,700 tonnes/year
Extra annual cost: ₹94.5 lakhs

Total Economic Impact

The combined economic impact includes:

Increased fuel costs: Due to reduced efficiency and higher heat rates
Reduced power generation: 4% loss in electrical output capacity
Maintenance costs: Increased wear and potential component failures
Opportunity costs: Lost revenue from reduced power generation capacity

Electrical Losses and System Efficiency

Generator Losses

Operating at 48 Hz increases several loss components in the electrical generation system:

Copper losses: Higher current requirements increase I²R losses in windings[16]
Core losses: Off-frequency operation affects magnetic core performance
Stray losses: Electromagnetic field distortions increase stray loss components
Excitation losses: Additional excitation power required for voltage regulation

Transmission and Distribution Impact

The frequency deviation affects the entire electrical network:

Transmission losses: Slightly reduced due to lower frequency, but offset by higher current requirements
Distribution transformer performance: Reduced efficiency due to off-design operation
Power factor correction: Capacitor banks designed for 50 Hz operation become less effective

Risk Assessment and Long-term Consequences

Equipment Life Impact

Sustained operation at 48 Hz presents several long-term risks:

Turbine blade fatigue: Cumulative damage leading to premature failures[17]
Generator insulation aging: Accelerated degradation due to thermal stress
Bearing and coupling wear: Off-design loading patterns
Auxiliary system performance: Fans, pumps, and other equipment operating at reduced efficiency

Safety and Reliability Concerns

The mechanical risks associated with 48 Hz operation include:

Vibration-induced failures: Potential for catastrophic blade ejection or rotor burst
Protection system challenges: Existing protective relays may not adequately protect equipment during sustained underfrequency operation[18]
System stability issues: Reduced spinning reserve and frequency response capability

Advantages of 48 Hz Operation (Limited Scenarios)

While predominantly disadvantageous, there are limited scenarios where 48 Hz operation might be acceptable:

Grid Stability Support

Emergency operation: During grid disturbances, temporary 48 Hz operation may prevent total system collapse
Black start capability: Gradual frequency restoration during system recovery
Load shedding coordination: Controlled underfrequency operation as part of automatic load shedding schemes[19]

Reduced Electrical Losses

Lower transmission losses: Reduced frequency results in slightly lower AC resistance, though this benefit is minimal and overshadowed by other losses

Recommendations for Energy Audit and System Optimization

Immediate Assessment Requirements

Industrial facilities considering or experiencing 48 Hz operation should conduct comprehensive energy audits focusing on:

Power system frequency stability analysis
Steam turbine mechanical condition assessment
Electrical system power quality evaluation
Economic impact quantification
Equipment protection system review

SARK Engineers & Consultants Energy Audit Services

To optimize your power system performance and mitigate the risks associated with off-frequency operation, SARK Engineers & Consultants offers specialized energy audit services including:

Comprehensive power system analysis: Frequency stability, power quality assessment, and harmonic analysis
Steam turbine performance optimization: Efficiency improvement strategies and mechanical condition monitoring
Economic feasibility studies: Cost-benefit analysis of system modifications and upgrades
Protective system design: Implementation of appropriate protection schemes for off-frequency operation
Energy management solutions: Integration of advanced control systems for optimal performance

Strategic Recommendations

Minimize 48 Hz operation duration: Limit underfrequency operation to emergency conditions only
Implement frequency restoration systems: Invest in automatic generation control and load-frequency control systems
Enhanced monitoring: Deploy advanced vibration monitoring and power quality analyzers
Preventive maintenance: Increase inspection frequencies for critical components during off-frequency operation
System upgrades: Consider power system modifications to improve frequency stability

Conclusion

Operating steam turbines at 48 Hz instead of the designed 50 Hz presents significant disadvantages that far outweigh any minimal benefits. The analysis reveals substantial increases in fuel consumption (6.06%), reduced power output (4%), and serious mechanical risks including blade vibration and premature component failure. The economic impact is considerable, with additional annual costs ranging from ₹47.3 lakhs for a 20 MW facility to ₹94.5 lakhs for a 40 MW installation.

The technical challenges encompass reduced thermodynamic efficiency, increased steam consumption, compromised electrical power quality, and elevated mechanical stress on turbine components. These factors combine to create operational risks that can lead to unplanned outages, equipment damage, and safety hazards.

For industrial facilities operating paper mills or sugar processing plants, maintaining design frequency operation is crucial for optimal performance, economic viability, and equipment longevity. When frequency deviations are unavoidable, they should be minimized in both magnitude and duration while implementing enhanced monitoring and protective measures.

Contact SARK Engineers & Consultants today for a comprehensive energy audit of your power system. Our expert team specializes in power system optimization, steam turbine performance analysis, and frequency stability solutions. Ensure your facility operates at peak efficiency while minimizing operational risks and maximizing economic returns through our proven energy management strategies.
